홈 /제품 소개/LED 긴급 드라이버/LED Lighting Transformer Waterproof DC 24V 12v IP67 LED Driver Outdoor Led Lights Power Supply 60w

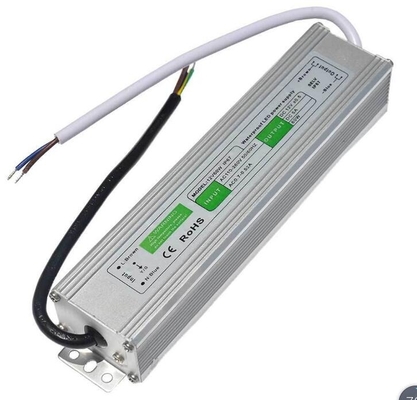

LED Lighting Transformer Waterproof DC 24V 12v IP67 LED Driver Outdoor Led Lights Power Supply 60w

1 Piece
MOQ
LED Lighting Transformer Waterproof DC 24V 12v IP67 LED Driver Outdoor Led Lights Power Supply 60w
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Model Number: CP-L60241
Output Power: 60w
Output Type: Single
Input Voltage: AC170-250V
Output Voltage: 24V
Output Frequency: 47~63Hz
Output Current: 3A
Application: LED Lighting
인증: CE
Warranty: 3 Years
Product Name: LED Dimmable Driver
Protection: Short Circuit
Type: Constant Voltage
Efficiency: 86%
Name: IP67 Led Power
Color: Silver White
Brand: C-Power
기본 정보
인증: CE
Model Number: CP-L60241
결제 및 배송 조건
Packaging Details: Standard package
Supply Ability: 88888888 Piece/Pieces per Month
제품 설명
Product Description

Output Voltage: DC 12V,DC 24V
Material: Aluminum
IP Grade: IP67 Waterproof
Working Temperature:-45 to 49degree

Output Voltage: DC 12V,DC 24V

Material: Aluminum

IP Grade: IP67 Waterproof

Working Temperature:-45 to 49degree

Output

DC Voltage

12V

24V

Rated Current

5A

2.5A

Current Range

0~5A

0~2.5A

Rated Power

60W

60W

Ripple&Noise

120Vp-p

150Vp-p

Set up,Rise time

500ms, 20ms / 230VAC

Input

Voltage Range

170~265VAC 47~62Hz

Efficiency

84%

85%

Ac Current

0.5A/230VAC

Leakage Current

0.25mA / 240VAC

Inrush Current

Cold Start <40A at 230VAC

Protection

Over Current

110~140% rated output power

Protection Type

Hiccup mode, recovers automatically after fault condition is removed

Over Voltage

Hiccup mode, recovers automatically after fault condition is removed

Environment

Working Temp&Humidity

-30-60°C 20-90% RH

Storage Temp&Humidity

-40-80°C 10-90%RH

Safety&EMC

Safety Standards

IP67 Approved ,Design Refer to: EN60950

Withstand Voltage

I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC

Isolation Resistance

I/P-O/P:>100M Ohms / 500VDC

EMC Emission

Compliance to EN55022 (CISPR22) Class B,EN61000-3-2 Class A, EN61000-3-3

EMC Immunity

Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, Criteria A

Special Note
This Power Supply Unit "DOES NOT" come with installation instruction, wiring cable,on/off switch, or screws.
Professional Installation of qualified electrician is highly recommended.
Note:
1.This is a DC12V or DC 24V (your choose)Power Supply Unit for professional use on LED lightning, Security Surveillance System, CCTV Security Camera, IP Camera, and etc.
2.Safety design with shortage protection, overload protection and auto voltage switching.
3.Regulated voltage & current output. This is a perfect choice to use as a LED Driver for all type of LED lighting 3.without flickering light & ensue the life span of your LED.
4.Full range of current output is possible for LED lighting with dimmable function.
About Calculate Method:
If Your LED Strip 60LEDs/m, and each LED 0.2W, then calculate max led Strip Length: 0.2W/LED × 60LEDs/m=12W/m, 24W(this listing)÷12W/m=2m,
So, Support the LED Strip(60LEDs/m, 0.2W/LED) Length (Max)=2m
Special Note:
This Power Supply Unit "DOES NOT" come with installation instruction, on/off switch, or screws.
Professional Installation of qualified electrician is highly recommended
