Name: 277vac triac dimming dimming led driver 200w led strip power supply 24v dc 7 years warranty 260*103*44.5mm
Brand: 277vac triac dimming dimming led driver 200w led strip power supply 24v dc 7 years warranty 260*103*44.5mm
SKU: SMT-024-200VTH
Price: 1 USD
Availability: InStock
Rating: 4.9 (160 reviews)

풍모 갤러리 제품 설명 따옴표를 요구하십시오

풍모

제품 사양

Model Number: SMT-024-200VTH

Output Power: 200watt

Output Type: Single

Input Voltage: 110-277Vac

Output Voltage: 12vDC

Output Frequency: 47-63Hz

Output Current: 16.7A

outer case: Aluminium housing

dimming mode: triac dimmable

working mode: constant voltage type

waterproof rate: IP67

certificate: UL(E507826),CE ROHS

input voltage: 90~305VAC

Efficiency & PF: effi>98% , PF>0.95

warranty: 5 years warranty

Size: 260*103*44.5mm

triac dimming driver: 12v dc dimming led strip power supply,5 years warranty

기본 정보

인증: UL(E507826),CE ROHS

Model Number: SMT-024-200VTH

결제 및 배송 조건

Packaging Details: inner box- white box + outer carton-standard exporting carton for 277vac triac dimming dimming led driver 200w led strip power supply 24v dc 7 years warranty

Supply Ability: 30000 Piece/Pieces per Month for ETL CE 277vac to 12v dc dimming led strip power supply

제품 설명

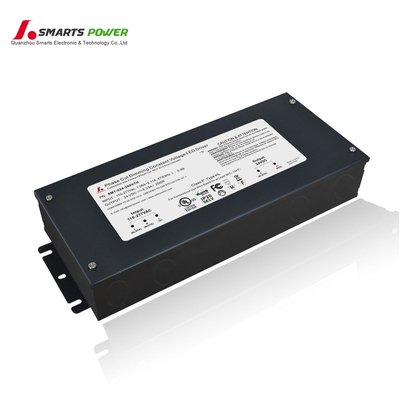

277vac triac dimming dimming led driver 200w led strip power supply 24v dc 7 years warranty

Product Description

Smarts Electronics' SMT-012-200VTH LED Driver is the perfect choice for use in Schools, Hospitals, and Shopping Malls or for any commercial application that 277V is present. The Drivers are paired with relative junction box. This unit can be operated with input current ranging from 100 to 277 VAC and will output 200 watt 12 Volt DC current at 16.66 amps. This led strip power supply features an IP67 rated design, making it suitable for indoor or outdoor use and includes integral short circuit and overload protection that will shut down the unit in case of faults and overloads to protect the unit and connected equipment from damage.

Features

·Output constant voltage

·Input voltage range 110-277VAC

·Built-in PFC function, PF> 0.95

·Efficiency > 87% / load:0~100%

·Protections:short circuit/over voltage/over heat

·IP20 design for indoor installations

·Cooling by free air convection

·Work with leading edge and trailing edge TRIAC dimmers available

·PWM output, does not change the color index

·Full protection aluminum housing, for dry, damp, wet location

·Strong compatibility, flicker-free dimming

·Suitable for LED lighting and moving sign applications

·Compliance to worldwide safety regulations for lighting

·Compatible with Forward phase, Reverse phase, Triac, MLV, ELV Dimmers

·7 years warranty

Specification

Model		SMT-012-200VTH		SMT-024-200VTH
Output	DC Voltage	12V		24V
	Voltage Tolerance	±0.5V
	Voltage Regulation	±0.5%
	Voltage Tolerance	±0.5V
	Load Regulation	±2%		±1%
	Rated current	16.67A		8.33A
	Rated power	200W
Input	Voltage Range	110-277VAC
	Frequency Range	47~63HZ
	Power Factor(Typ.)@ full load	0.96@120VAC 0.97@277VAC	0.97@120VAC 0.95@277VAC
	THD(Typ.)@ full load	<20%
	Inrush Current (Typ.)	15A, 50%, 1.4ms
	Full Load Efficiency(Typ.)	>83%	>83%
	AC Current(Typ.)	2.3A@110VAC
	Leakage current	<0.50mA
Protection	Short Circuit	shut down o/p voltage, re-power on to recover after fault condition is removed
	Over load	≤120% constant current limiting, auto-recovery
	Over temperature	100℃±10℃ shut down o/p voltage, automatically recover after cooling.
	Over Current	≤1.4*I out
Environment	Working TEMP.	-40~+60℃
	Working Humidity	20~90%RH,non-condensing
	Storage TEM.,Humidity	-40~+80℃,10~95%RH
	TEMP.coefficient	±0.03%/℃(0~50℃)
	Vibration	10~500Hz 2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
Safety&EMC	Safety standards	UL8750
	Withstand voltage	I/P-O/P:3.75KVAC
	Isolation resistance	I/P-O/P:100MΩ/500VDC/25℃/70%RH
	EMC EMISSION	Compliance to EN55015,EN61000-3-2 (≥50%load)
	EMC IMMUNITY	EN61000-4-2,3,4,5,6,11(Surge 4KV)
Others	Weight	1.8Kg
	Size	26010346mm (LWH)
	packaging	10PCS/CTN , 385335200mm 20PCS/CTN
Notes	1. All parameters NOT specially mentioned are measured at 110V & 277VAC input , rated load and 25℃of ambient temperature. 2..Tolerance:includes set us tolerance,line regulation and load regulation.
IP20 100-277Vac UL(E507826)

Mechanical Specification

Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,

Output: Red is(DIM+),Black is(DIM-)

Note: Any other requests we can customized.

Dimming Operation

Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
Compatible with Leading edge or trailing edge triac dimmers, but trailing edge dimmers work better..
Please try to use dimmers with power at least 1.5 times as the output power of the driver.

Related accessory

SMARTS focus on LED drivers manufacture and know well about the electric codes in North American, we suggest you can use those strain relief and aluminum soft tube to hide wires, its easy to get in North American market. and if you can't find that, we can provide and fix them in our factory before shipping. (see picture below)

Note: Different wattage LED drivers use different size, let us know if you need those, we will fix right size for you.

Simple Connection Diagram

Smarts Electronics developed some new items of 110~277VAC & output 12V /24VDC dimmable LED drivers

with high PFC and efficiency: they are:

---- triac dimmable LED drivers: 12VDC & 24VDC 30w , 60w ,100W, 120w , 150W, 200W, 250W, 300W with junction boxes attached .. 7 years warranty ( PF : 0.95, Efficiency : 0.85 )

---- DALI dimmable LED drivers: 12V & 24V 100W , 24V 120W , 12V & 24V 150W, 12V & 24V 180W , 24V 200W 3 years warranty ( PF : 0.95, Efficiency : 0.98)

---- 0-10V dimmable LED drivers: 12V & 24V 100W , 24V 120W , 12V & 24V 150W, 12V & 24V 180W , 24V 200W 3 years warranty ( PF : 0.95, Efficiency : 0.98 )
