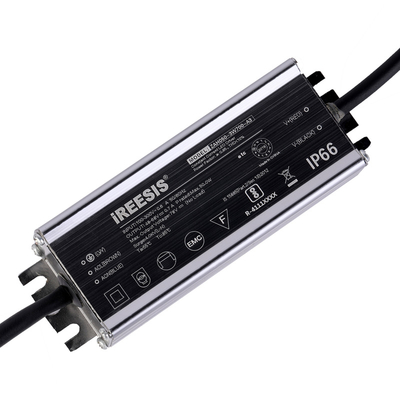

Name: LED Flood Lighting Ireesis Bis 50W Input 100-280Vac Output 48-68V 700mA Power Supply Waterproof Tube LED Flood Light Street Lamp Driver
Brand: LED Flood Lighting Ireesis Bis 50W Input 100-280Vac Output 48-68V 700mA Power Supply Waterproof Tube LED Flood Light Street Lamp Driver
SKU: ZAH050-3F700-C3
Price: 1 USD
Availability: InStock
Rating: 4.7 (104 reviews)

풍모 갤러리 제품 설명 따옴표를 요구하십시오

풍모

제품 사양

Warranty(Year): 5-Year

Lighting solutions service: Lighting and circuitry design, DIALux evo layout, LitePro DLX layout, Agi32 layout, auto CAD layout, Onsite metering, Project Installation

Product Weightï¼ˆkgï¼‰: 1

Model Number: ZAH050-3F700-C3

Output Power: 51 - 100W

Output Type: Multiple

Input Voltage: 220V

Output Frequency: 50-60Hz

Output Current: 700MA

Brand: iREESIS

Protections: Short Circuit Overtemp Overload Overvolt

Working temperature: -30~ 65â„ƒ

Application: LED flood lighting,street lighting

Waterproof rate: IP65

Parameters: 50W Input 100-280Vac Output 48-68V current 700mA

Size: 92*33*25

Efficiency: 85%

Safety standards: Design refer to EN60950-1, EN61347-2-13

AC input frequency range: 47~63Hz

Luminous Efficacy(lm/w): 100

기본 정보

Model Number: ZAH050-3F700-C3

결제 및 배송 조건

Supply Ability: 150000 Piece/Pieces per Month

제품 설명

Ireesis BIS 50W Input 100-280Vac Output 48-68V current 700mA Power Supply Waterproof Tube LED Flood Light street Lighting driver

General Specification
AC input voltage range			85~440Vac
AC input frequency range			47~63Hz
AC inrush current (max.)			Cold start , 30A at 230Vac，Full load
Over voltage protection			115% ~135% rated output volteage
Turn on delay time			< 1.0 S@ Full load
Dielectric strength			>3.75KV (L~N)
Ingress protection			IP66
Working temperature			-30 ~+ 65℃
Working humidity			20%~90% R.H.
Storage environment			-40 ~+ 85℃, 0%~95% R.H.
Safety standards			Design refer to EN60950-1, EN61347-2-13
EMC standards			N/A
Connection	Input	0.4²× 3C (Line: Brown, Neutral: Blue, Ground: Yellowish green ), Length:40cm
		Output	0.4²× 2C (+: Red, -: Black) ,Length:25cm
Dimension ( L×W×H )(mm)			118x47x32

Features

∙ Nominal voltage:180-277Vac / Full range
∙ Power factor: ≥ 0.95 / Full range
∙ Total Harmonic Distortion(THD): ≤ 10%
∙ Protections: Open circuit / Short circuit/Overload
∙ Cut off：Input overvoltage & undervoltage cut off
∙ OTP: Tc ≥ 85℃，Reducing Current
∙ Constant current design
∙ Low cost , high reliability
∙ Current ripple: < 30%
∙ Cooling by free air convection
∙ Surge：4KV/6KV (L~N)
∙ Can withstand input voltage of 440V for 8hrs
∙ Suitable for LED flood lighting, street lighting
∙ 5 years warranty, MBTF > 10000 hours

OEM/ODM

CUSTOMIZED SERVICES

Constsnt Current Design

Safe & High Reliability

Surge Protection

Fujie Optoelectronics (huizhou) Co., Ltd.

Iresis photoelectricity (zhongshan) co., ltd. since its inception in 2017, continue to focus on LED power products R&D, manufacturing, sales, technical servicesfter long-term unremitting efforts. it now has a certain market share in China. With the increasing growth of import and export trade, to further meet the import and export needs of traders. We provide businesses with professional, personalized and all-round services, our company has formed a complete external power supply system.

Q1. Are you a manufacturer?
A: Yes, we are the manufacturer.We have one factory in Zhongshan, Guangdong, China.

Q2. Can I get sample?
A: Sure, If you need sample, pls tell me your spec need, or tell me your led light info, then i will recommend you
suitable led driver with good price, after confirm details, we will arrange the samples for you to test. Welcome sample
order to test and check quality.

Q3. Is it OK to print my logo on led driver & light product and use my own package and trade mark?
A: Yes. Use your own design is ok. Please inform us
formally before our production and confirm the design firstly based on our sample.

Q4: Does your company accept OEM&ODM?
A: Yes, welcome OEM&ODM.

Q5:What is your advantages?
1. OEM/ODM is welcome, over 15 years of experence.
2. High efficiency, low power consumption led light driver.
3. CE(TUV),RoHs, SAA, C-tick,RCM, FCC and ETL approved.
4. Stable quality, burn-in tests with 100% full load for more than 4 hours.
5. Over-heat, over-load, short-circuit & open-circuit protection.
6. Offer 2,3 or 5 years warranty and maintain our repair rate below 0.3%.
7. We will apply 0.3% spare parts on bulk orders.
